Model SC1510(11′-15′):

Working Width	11’	15’
Transport Width	11′ 1″	15′ 1″
Transport Height	5′ 8″	5′ 8″
Length Without Attachments	20’	20’
Gangs	4	4
Total Blades	26	36
Blade Spacing	10″	10″
Total Bearings	8	8
Gang Mounting	2 C-shanks per gang section	2 C-shanks per gang section
Wheels, Center		2 sets, duals
Hubs, Center	6-bolt, HD*	6-bolt, HD*
Tires, Center	11L x 15″ **	11L x 15″ **
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	4.5″	4.5″
Estimated Weight***	6,970 lbs.	8,850 lbs.
Approx. Engine HP***	55-95	74-129

Model SC1030 (20′-30′):

Transport Width	14′ 3″	15′ 8″	15′ 4″
Transport Height	8′ 8″	10′ 3″	14′
Length Without Attachments	20’	20’	20’
Gangs	8	8	12
Blades, Center	26	26	26
Blades Per Wing	11	15	18
Total Blades	48	56	72
Blade Spacing	10″	10″	10″
Total Bearings	16	16	24
Gang Mounting	2 C-shanks per gang section	2 C-shanks per gang section	2 C-shanks per gang section
Wheels, Center	2 sets, duals	2 sets, duals	2 sets, duals
Wheels, Wing	N/A	1 set, duals	1 set, duals
Hubs, Center	8-bolt, HD	6-bolt, HD*	8-bolt, HD
Hubs, Wing	N/A	6-bolt, HD*	6-bolt, HD*
Tires, Center	12.5L x 15″***	11L x 15″**	12.5L x 15″***
Tires, Wing	N/A	11L x 15″**	11L x 15″**
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels	One rephasing 8″ stroke per set of wheels	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	4.5″	5″	5″
Hyd. Cyl., Wing Lift	4″ x 33″	4″ x 33″	5″ x 33″
Estimated Weight****	13,550 lbs.	15,100 lbs.	17,950 lbs.
Approx. Engine HP****	100-172	112-197	147-257

Model SC1535 (30′ HD):

Working Width	30’
Transport Width	19′ 6″
Transport Height	10′ 9″
Length Without Attachments	20′
Gangs	8
Blades, Center	36
Blades Per Wing	18
Total Blades	72
Blade Spacing	10″
Total Bearings	16
Gang Mounting	2 C-shanks per gang section
Wheels, Center	2 sets, duals
Wheels, Wing	1 set, duals
Hubs, Center	8-bolt, HD
Hubs, Wing	6-bolt, HD*
Tires, Center	12.5L x 15″***
Tires, Wing	11L x 15″**
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	5.5″
Hyd. Cyl., Wing Lift	4″ x 33″
Estimated Weight****	21,350 lbs.
Approx. Engine HP****	147-270

Model SC1530 (30′-40′):

Working Width	30’	35’	40’
Transport Width	19′ 6″	19′ 6″	19′ 6″
Transport Height	10′ 9″	13- 10″	16′
Length Without Attachments	20′	20′	20′
Gangs	8	12	12
Blades, Center	36	36	36
Blades Per Wing	18	24	30
Total Blades	72	84	96
Blade Spacing	10″	10″	10″
Total Bearings	16	24	24
Gang Mounting	2 C-shanks per gang section	2 C-shanks per gang section	2 C-shanks per gang section
Wheels, Center	2 sets, duals	2 sets, duals	2 sets, duals
Wheels, Wing	1 set, duals	1 set, duals	1 set, duals
Hubs, Center	6-bolt, HD*	8-bolt, HD	8-bolt, XHD
Hubs, Wing	6-bolt, HD*	6-bolt, HD*	8-bolt, HD
Tires, Center	11L x 15″**	12.5L x 15″***	340/65R18
Tires, Wing	11L x 15″**	11L x 15″**	12.5L x 15″***
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels	One rephasing 8″ stroke per set of wheels	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	5″	5.5″	5.5″
Hyd. Cyl., Wing Lift	4″ x 33″	5″ x 33″	5″ x 33″
Estimated Weight****	17,400 lbs.	20,500 lbs.	22,200 lbs.
Approx. Engine HP****	147-257	175-301	240-420

Model SC1535 (40′ HD):

Working Width	40’ HD
Transport Width	19′ 6″
Transport Height	16′
Length Without Attachments	20′
Gangs	12
Blades, Center	36
Blades Per Wing	30
Total Blades	96
Blade Spacing	10″
Total Bearings	24
Gang Mounting	2 C-shanks per gang section
Hubs, Center	8-bolt, XHD
Hubs, Wing	8-bolt, HD
Tires, Center	340/65R18
Tires, Wing	12.5L x 15″
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	6″
Estimated Weight**	25,374 lbs.
Approx. Engine HP**	218-385

Model SC1550 (45′-50′):

Working Width	45’	50’
Transport Width	19′ 6″	19′ 6″
Transport Height	14′ 4″	16′ 8″
Length Without Attachments	20′	23″
Gangs	16	16
Blades, Center	36	36
Blades Per Wing	24+12	30+12
Total Blades	108	120
Blade Spacing	10″	10″
Total Bearings	32	32
Gang Mounting	2 C-shanks per gang section	2 C-shanks per gang section
Wheels, Center	2 sets, duals	2 sets, duals
Wheels, Wing	N/A	1 set, duals
Hubs, Center	8-bolt, XHD	8-bolt, XHD
Hubs, Wing	8-bolt, HD	8-bolt, XHD
Tires, Center	340/65R18	340/65R18
Tires, Wing	11L x 15″*	340/65R18
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	6″	6″
Hyd. Cyl., Wing Lift	5″ x 33″	5″ x 33″
Hyd. Cyl, 2nd Wing	4.5″ x 16″	4.5″ x 16″
Estimated Weight**	26,100 lbs.	27,250 lbs.
Approx. Engine HP**	240-420	250-450

Model 1556 (60′):

Working Width	60’
Transport Width	22′ 10″
Transport Height	17′ 4″
Length Without Attachments	26′
Gangs	20
Blades, Center	36
Blades Per Wing	30+24
Total Blades	144
Blade Spacing	10″
Total Bearings	40
Gang Mounting	2 C-shanks per gang section
Hubs, Center	10-bolt, XHD
Hubs, Wing	8-bolt HD
Tires, Center	425/65R22.5
Tires, Wing	340/65R22.5
Hyd. Cyl., Main Lift	One rephasing 8″ stroke per set of wheels
Master Hyd. Cyl. Dia.	6″
Estimated Weight***	33,850 lbs.
Approx. Engine HP***	342-620

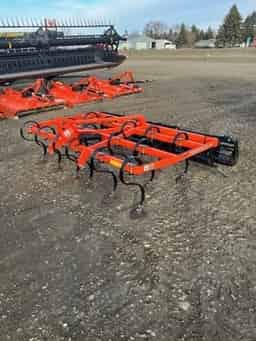

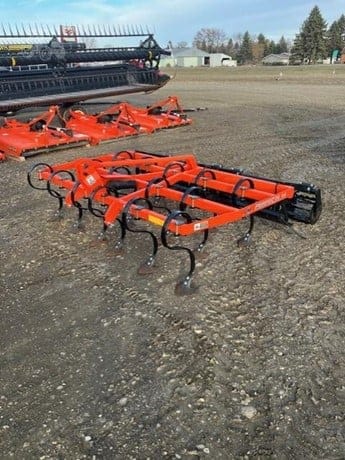

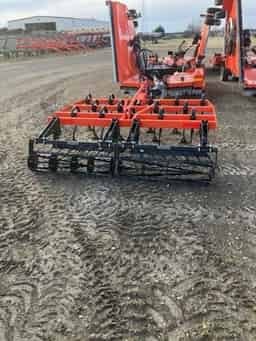

2024 UNVERFERTH PERFECTA 14

$6,500.00
